| Detail: | S7706/S7712 main control unit H (X1) |
| Model: | LSS7SRUHX101 (03034HXQ, 03034HXQ-001) |
| Condition: | Factory Sealed New |
| Related: | Huawei Switch S7706 (02113305) Huawei Switch S7712 (02113306) Huawei Switch S7706 PoE (02115713) |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
7.5
|
2-7 Days
US$
|
| Payment: |
More
|

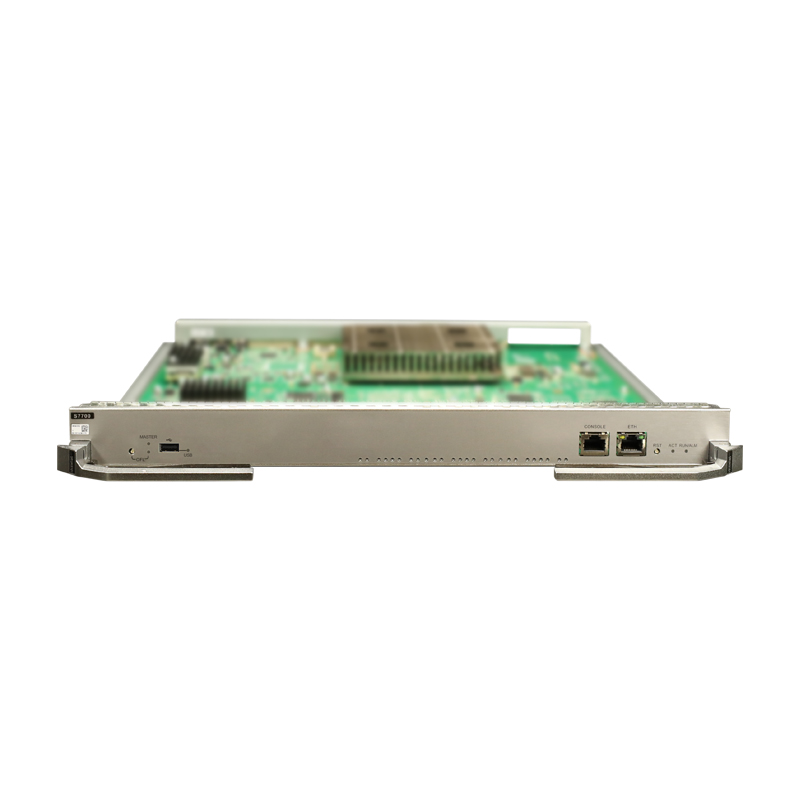

LSS7SRUHX101 is the Huawei S7706/S7712 Main Control Unit. The LSS7SRUHX101 can be installed in: Slots 07 and 08 in an S7706 chassis, Slots 13 and 14 in an S7712 chassis.
Model | LSS7SRUHX101 |
Part Number | 03034HXQ, 03034HXQ-001 |
Description | S7706/S7712 main control unit H (X1) |
Basic functions | Huawei S7706/S7712 Main Control Unit |
Memory | 4 GB (not expandable) |
Storage | NAND flash: 2 GB, built-in |
Dimensions without packaging (H x W x D) [mm(in.)] | 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.94 in.) |
Dimensions with packaging (H x W x D) [mm(in.)] | 160.0 mm x 510.0 mm x 570.0 mm (6.30 in. x 20.08 in. x 22.44 in.) |
Weight without packaging [kg(lb)] | 3.20 (7.05) |
Weight with packaging [kg(lb)] | 4.35 (9.59) |
Maximum power consumption [W] | 105 |
Note:
(1) | OFL button | (6) | LINK indicator of the ETH port |
(2) | OFL indicator | (7) | RST button |
(3) | MASTER: master/standby status indicator | (8) | ACT: active/standby status indicator |
(4) | USB indicator | (9) | RUN/ALM: running status indicator |
(5) | ACT indicator of the ETH port |
Note:
(1) | One USB port | (3) | One ETH management port |
(2) | One console port |
Do you have any question about the LSS7SRUHX101 (03034HXQ, 03034HXQ-001)?
Contact us now via [email protected].
LSS7SRUHX101 Specification | |
Basic Information | |
Model | LSS7SRUHX101 |
Part Number | 03034HXQ, 03034HXQ-001 |
Description | S7706/S7712 main control unit H (X1) |
Level-1 category | MPU |
Technical Specifications | |
Dimensions without packaging (H x W x D) [mm(in.)] | 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.94 in.) |
Dimensions with packaging (H x W x D) [mm(in.)] | 160.0 mm x 510.0 mm x 570.0 mm (6.30 in. x 20.08 in. x 22.44 in.) |
Weight without packaging [kg(lb)] | 3.20 (7.05) |
Weight with packaging [kg(lb)] | 4.35 (9.59) |
Typical power consumption [W] | 103 |
Typical heat dissipation [BTU/hour] | 351.45 |
Maximum power consumption [W] | 105 |
Maximum heat dissipation [BTU/hour] | 358.27 |
Memory | 4 GB (not expandable) |
Storage | NAND flash: 2 GB, built-in |
