Huawei Interface Card S7Q02001 (02313UBW, 02313UBW-002)

S7Q02001 2-Port 40GE QSFP+ Interface Card (02313UBW, 02313UBW-002) Flexible Card

Quick Specification

Table 1 shows the Quick Specification.

Model	S7Q02001
Part Number	02313UBW, 02313UBW-002
Description	2-port 40GE QSFP+ interface card
Dimensions without packaging (H x W x D)	40 mm x 100 mm x 208 mm (1.6 in. x 3.9 in. x 8.2 in.)
Weight with packaging	0.6 kg (1.32 lb)
Typical power consumption [W]	24
Maximum power consumption [W]	27
Typical heat dissipation [BTU/h]	81.89
Maximum heat dissipation [BTU/h]	92.13

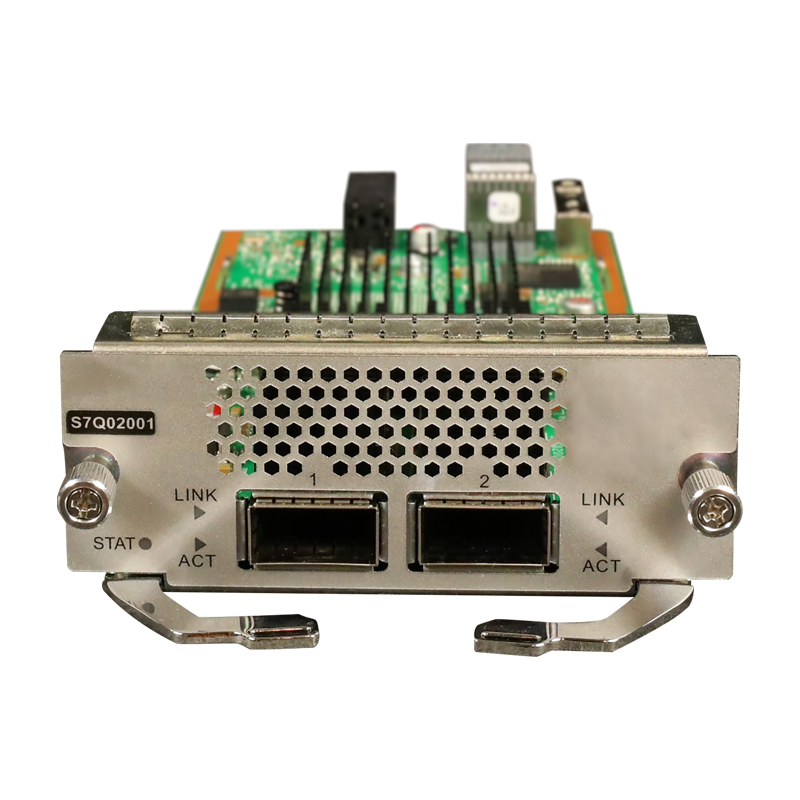

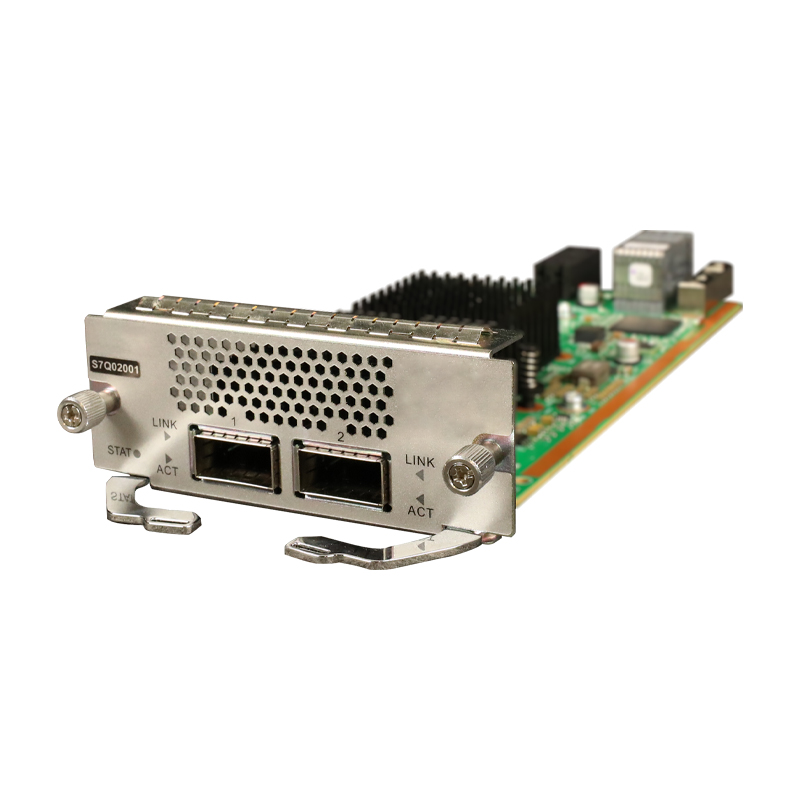

Figure 1 shows the appearance of S7Q02001.

appearance-s7q02001-datasheet

Product Details

Table 2 shows the Mappings between S7Q02001 and product models.

Product	Product Model	First Supported Version	Limitations
S5731-H	S5731-H24HB4XZ (02354QXD)	V200R021C10SPC500	-
S5731-H	S5731-H24HB4XZ (02354QXD-001)	V200R021C10SPC600	-
S5731-H	S5731-H24P4XC (02352QPV)	V200R021C01	-
S5731-H	S5731-H24P4XC (02352QPV-001)	V200R021C01	-
S5731-H	S5731-H24P4XC (02352QPV-003)	V200R021C10SPC600	-
S5731-H	S5731-H24T4XC (02352QPP)	V200R021C01	-
S5731-H	S5731-H24T4XC (02352QPP-001)	V200R021C01	-
S5731-H	S5731-H24T4XC (02352QPP-005)	V200R021C10SPC600	-
S5731-H	S5731-H48HB4XZ (02354QXB)	V200R021C10SPC500	-
S5731-H	S5731-H48HB4XZ (02354QXB-001)	V200R021C10SPC600	-
S5731-H	S5731-H48P4XC (02352SVD)	V200R021C01	-
S5731-H	S5731-H48P4XC (02352SVD-001)	V200R021C01	-
S5731-H	S5731-H48P4XC (02352SVD-003)	V200R021C10SPC600	-
S5731-H	S5731-H48T4XC (02352QPT)	V200R021C01	-
S5731-H	S5731-H48T4XC (02352QPT-003)	V200R021C01	-
S5731-H	S5731-H48T4XC (02352QPT-007)	V200R021C10SPC600	-
S5731S-H	S5731S-H24HB4XZ-A (02354QXE)	V200R021C10SPC500	-
S5731S-H	S5731S-H24HB4XZ-A (02354QXE-001)	V200R021C10SPC600	-
S5731S-H	S5731S-H24T4XC-A (02352YRG)	V200R021C01	-
S5731S-H	S5731S-H24T4XC-A (02352YRG-001)	V200R021C01	-
S5731S-H	S5731S-H24T4XC-A (02352YRG-003)	V200R021C10SPC600	-
S5731S-H	S5731S-H48HB4XZ-A (02354QXC)	V200R021C10SPC500	-
S5731S-H	S5731S-H48HB4XZ-A (02354QXC-001)	V200R021C10SPC600	-
S5731S-H	S5731S-H48T4XC-A (02352YRF)	V200R021C01	-
S5731S-H	S5731S-H48T4XC-A (02352YRF-003)	V200R021C01	-
S5731S-H	S5731S-H48T4XC-A (02352YRF-005)	V200R021C10SPC600	-
S5732-H	S5732-H24UM2CC (02353HUC)	V200R022C00	-
S5732-H	S5732-H24UM2CC (02353HUC-003)	V200R022C00	-
S5732-H	S5732-H24UM2CC (02353SJY)	V200R022C00	-
S5732-H	S5732-H24UM2CC (02353SJY-001)	V200R022C00	-
S5732-H	S5732-H24UM2CC (02353SJY-004)	V200R022C00	-
S5732-H	S5732-H24UM2CC (02353SJY-010)	V200R022C00	-
S5732-H	S5732-H24UM2CC (02353SJY-011)	V200R022C00	-
S5732-H	S5732-H24UM2CC (02353SJY-014)	V200R022C00	-
S5732-H	S5732-H24UM2CC (02353SJY-020)	V200R022C00	-
S5732-H	S5732-H24UM2CC (02353SJY-021)	V200R022C00	-
S5732-H	S5732-H24UM2CC (02353SJY-024)	V200R022C00	-
S5732-H	S5732-H48UM2CC (02353HUB)	V200R022C00	-
S5732-H	S5732-H48UM2CC (02353HUB-002)	V200R022C00	-
S5732-H	S5732-H48UM2CC (02353SJT)	V200R022C00	-
S5732-H	S5732-H48UM2CC (02353SJT-001)	V200R022C00	-
S5732-H	S5732-H48UM2CC (02353SJT-003)	V200R022C00	-
S5732-H	S5732-H48UM2CC (02353SJT-004)	V200R022C00	-
S5732-H	S5732-H48UM2CC (02353SJT-010)	V200R022C00	-
S5732-H	S5732-H48UM2CC (02353SJT-011)	V200R022C00	-
S5732-H	S5732-H48UM2CC (02353SJT-013)	V200R022C00	-
S5732-H	S5732-H48UM2CC (02353SJT-014)	V200R022C00	-
S5732-H	S5732-H48UM2CC (02353SJT-020)	V200R022C00	-
S5732-H	S5732-H48UM2CC (02353SJT-021)	V200R022C00	-
S5732-H	S5732-H48UM2CC (02353SJT-023)	V200R022C00	-
S5732-H	S5732-H48UM2CC (02353SJT-024)	V200R022C00	-
S5732-H	S5732-H48XUM2CC (02353MLH)	V200R022C00	-
S5732-H	S5732-H48XUM2CC (02353MLH-001)	V200R022C00	-
S5735S-H	S5735S-H24S4XC-A (98011041)	V200R021C01	-
S5736-S	S5736-S24S4XC (98011038)	V200R021C01	-
S5736-S	S5736-S24UM4XC (98011020)	V200R021C01	-
S5736-S	S5736-S24UM4XC (98011020-001)	V200R021C01	-
S5736-S	S5736-S24UM4XC (98011020-004)	V200R021C01	-
S5736-S	S5736-S48S4XC (98011042)	V200R021C01	-

Figure 2 shows the indicators on the S7Q02001.

indicators-s7q02001-datasheet

Note:

(1)

STAT: running status indicator

(2)

LINK/ACT indicators of ports

Figure 3 shows the ports on the S7Q02001.

ports-s7q02001-datasheet

Note:

(1)	Two 40GE QSFP+ optical ports

Table 3 shows the functions and features of the S7Q02001.

Function	Description
Basic functions	Provides two 40GE QSFP+ optical ports for data access and line-rate switching. Each 40GE port can be split into four 10GE ports.
Hot swapping	Supported
Service port stacking	Ports on the card can be used as stack ports.

Get More Information

Do you have any question about the S7Q02001 (02313UBW, 02313UBW-002)?

Specific Data Sheet:

S7Q02001 Specification
Basic Information
Model	S7Q02001
Part Number	02313UBW 02313UBW-002
Description	2-port 40GE QSFP+ interface card
Level-1 category	Flexible card
Technical Specifications
Dimensions without packaging (H x W x D)	40 mm x 100 mm x 208 mm (1.6 in. x 3.9 in. x 8.2 in.)
Dimensions with packaging (H x W x D)	80 mm x 160 mm x 305 mm (3.15 in. x 6.30 in. x 12.01 in.)
Weight without packaging	0.40 kg (0.88 lb)
Weight with packaging	0.6 kg (1.32 lb)
Typical power consumption [W]	24
Maximum power consumption [W]	27
Typical heat dissipation [BTU/h]	81.89
Maximum heat dissipation [BTU/h]	92.13
