Detail: Huawei EPHF Service Board 16-port EPON OLT interface board with PX20++ or PX20+ SFP
Model: EPHF
Condition: Factory Sealed New
Related:
Warranty:
1-Year Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
3.5
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Overview


Huawei EPHF Service Board is 16-port EPON OLT interface board with PX20++ or PX20+ SFP module appled to Huawei MA5800 series


Quick Specification



Board

EPHF

GPON Port

16-EPON Port

Type

PX20+ Module   : One-fiber bi-directional optical module, class C+

Operating   Wavelength

Tx: 1490 nm,   Rx: 1310 nm

Encapsulation   Type

SFP

Port Rate

Tx: 2.49   Gbit/s, Rx: 1.24 Gbit/s

Optical   Connector Type

SC/PC

Optical Fiber   Type

Single-mode

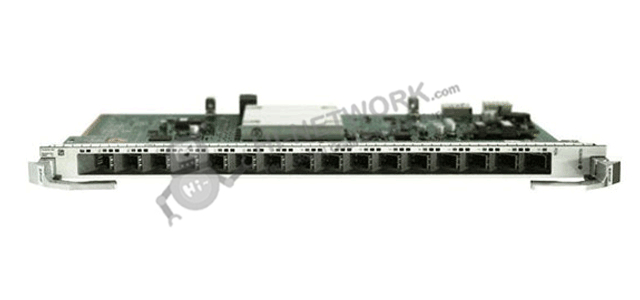

Appearance:

EPHF-datasheet


Product Details:

Huawei EPHF 10G Service Board Product Feature:

•Forwarding capality: 16 Gbit/s

• Number of LLIDs supported by per PON port: 64

• Service flows per PON board: 16368

• Maximum number of MAC addresses: 131072

• Max split radio 1:64, can maximum access 16*64 EPON subscribers

• Port Rate: 1.25Gbit/s

• Operating Wavelength: Tx: 1490 nm, Rx: 1310 nm

• Standards Compliance: IEEE 802.3ah

•PX20++ SFP Module Optical Power: 5dBm~9dBm, Receiver Sensitivity: -34dBm





Get more information

Do you have any question about the EPHF?

Contact us now via [email protected].

Specific Data Sheet :


Model

EPHF

GPON Port

16-EPON Port

Type

PX20+ Module : One-fiber   bi-directional optical module, class C+

Operating Wavelength

Tx: 1490 nm, Rx: 1310 nm

Encapsulation Type

SFP

Port Rate

Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s

Minimun Output Optical Power

PX20+ Module : 3.00 dBm

Maximum Output Optical Power

PX20+ Module : 7.00 dBm

Maximum Receiver Sensitivity

PX20+ Module : -32.00 dBm

Optical Connector Type

SC/PC

Optical Fiber Type

Single-mode

Reach

20.00 km

Overload Optical Power

PX20+ Module : -12.0 dBm

Extinction Ratio

8.2 dB

Dimensions (W x D x H)

23.30 mm * 257.90 mm * 399.20 mm

Power Consumption

Static: 25W; Maximum:50W

Maximum Frame Size

2004 bytes 9216 bytes (jumbo frame   enabled)

Operating temperature

-40°C to +65°C
